Features and Specifications:
Stepped tea stalk picker separator, including a base, the base is fixed with a body, an upper material cavity and a storage box, the top of the body is fixed with a guide funnel, the side of the body is opened with an inlet, the bottom of the inlet is fixed with a stalk picking table, the top of the inlet is fixed with a stalk picking port, the end of the stalk picking table away from the outlet is equipped with a collection port, the bottom of the stalk picking table is equipped with a motor body, the motor body is fixed with a mounting plate, The mounting plate is fixed on the top of the support base, the support base and the bottom of the stalk picking table are fixed with support legs, the bottom of the support legs is fixedly connected to the base, the inlet and outlet are opened on both sides of the upper material chamber, the outlet is connected with a material guide tube, the material guide tube is located above the material guide funnel, the bottom of the material storage box is fixedly connected to the base through the support column. Beneficial effect: The tea leaves and tea stems are well separated and finally collected separately, the structure of the whole stalk picker is very simple and the efficiency of stalk picking is high.
| Model | TS-TSPS-80 |
| Processing Type | Step vibration type |
| Dimensions | 1780*1050*1630 mm |
| Work Voltage & Power | 220V50HZ Single-phase,0.55 kw |
| Vibration frequency | 686~915 times/minutes |
| Picking Width | 820 mm |
| Capacity | 80~120 kg/h |
| Weight | 200 kg |

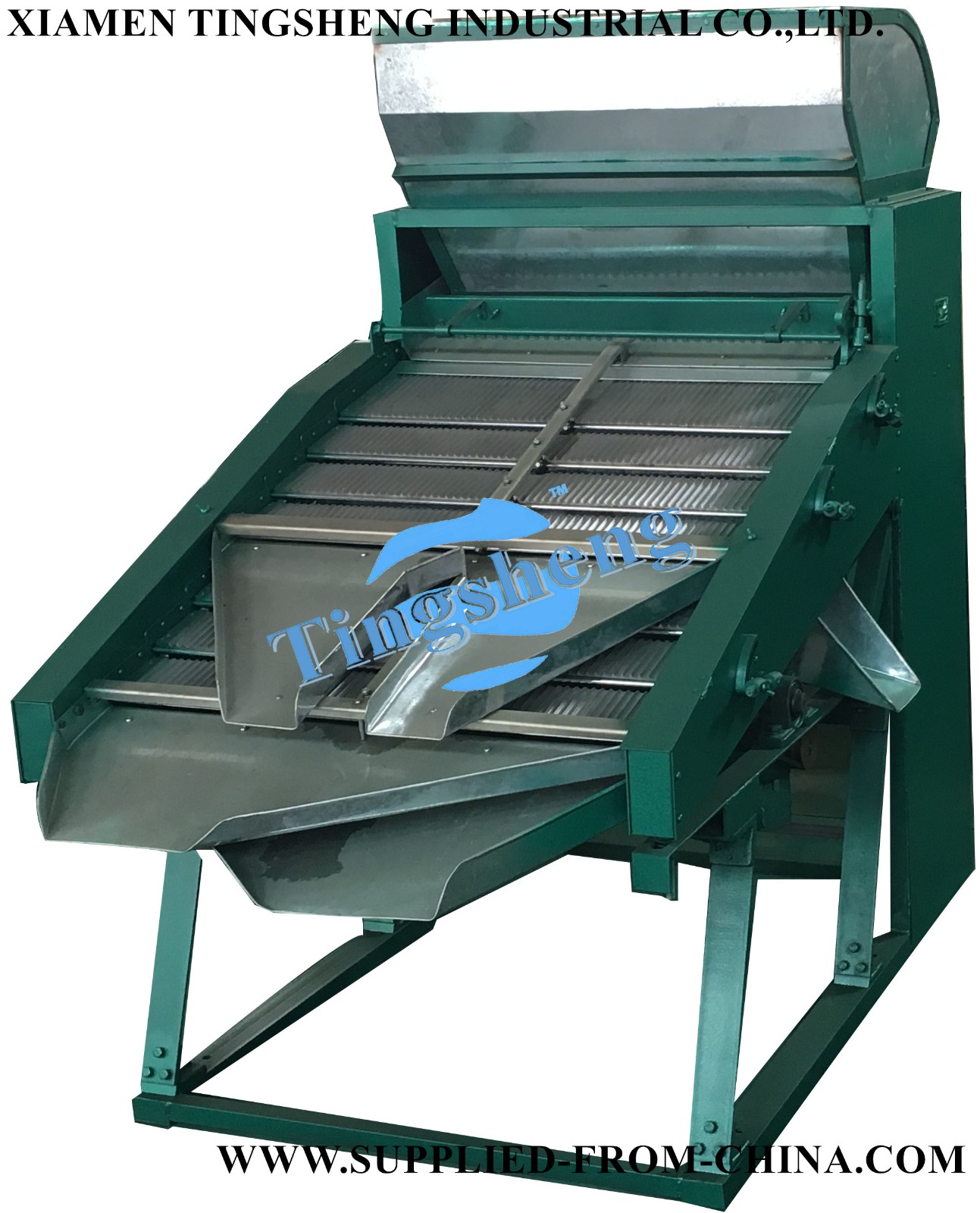

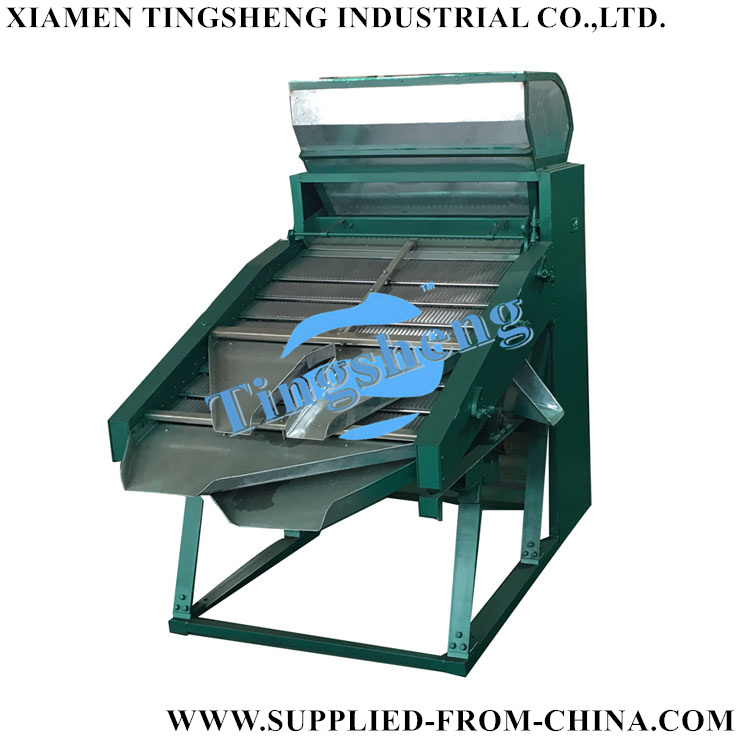

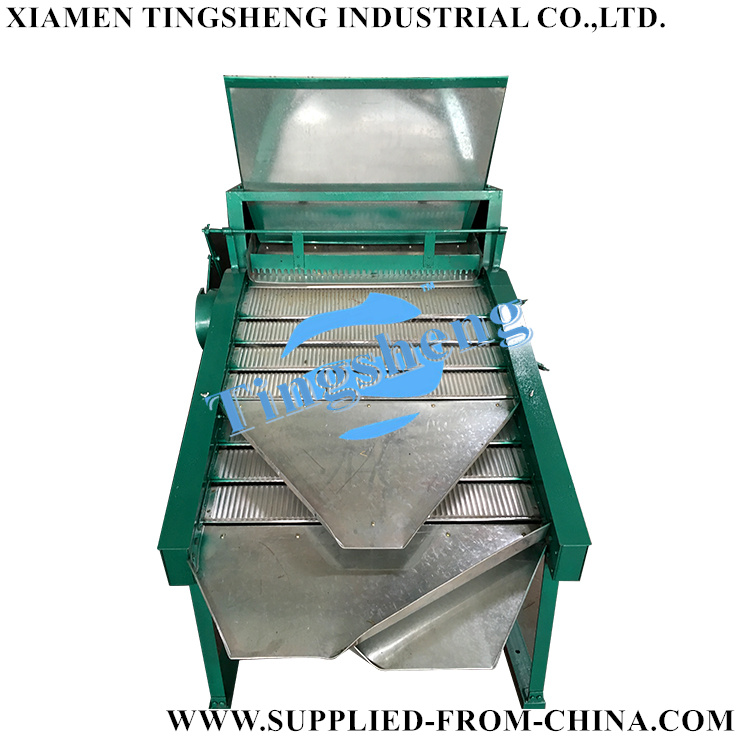

Pictures:
